Model HLT Semi-Automatic Screen Printer

  • Capability to print flat & cylindrical products.
  • Table features independently micro-adjustable X, Y and angular movements.
  • 100% pneumatic operation that cannot overload or burnout.
  • Aluminum tooling plate base ground flat within +/- .001” (.025 mm).
Call 860-677-6400 Or Contact Us for Questions or to Configure Your Machine
Category: Tags: ,

Systems To Suit Your Application & Budget

Contact Us today to speak with an application engineer.

Description

Contact us today for more information or your custom quote.

Complete the form below or call us at 860-677-6400. Our Application Engineers are ready to help!

Registration At High Speeds for Maximum Productivity

English Data Sheet | Spanish Data Sheet

At the heart of the HLT is the unique Harmonic Lift Table for smooth, fast, vibration-free operation. The micro-adjustable work table adapts to X, Y, and angular axis to meet the toughest of printing challenges. The result is perfect registration at high speeds for maximum productivity.

By lifting the product to the screen, which remains in a fixed position, the HLT also minimizes potential printing flaws caused by dust accumulating on a moving a screen.

Linear bearings, rated at over 300 million cycles, and the HLT’s inherent design simplicity guarantees years of trouble-free service.

Virtually limitless in its applications, the HLT adapts easily to various substrates and shapes

  • Thick or thin
  • Cylindrical
  • Flat
  • tapered
  • oval

Easy setup and fast changeover make the HLT ideal for production runs.

You can also choose from hundreds of custom components and tooling attachments to meet specialized printing needs.

More Pictures & Videos

Additional information

Applications

Pictures & Videos

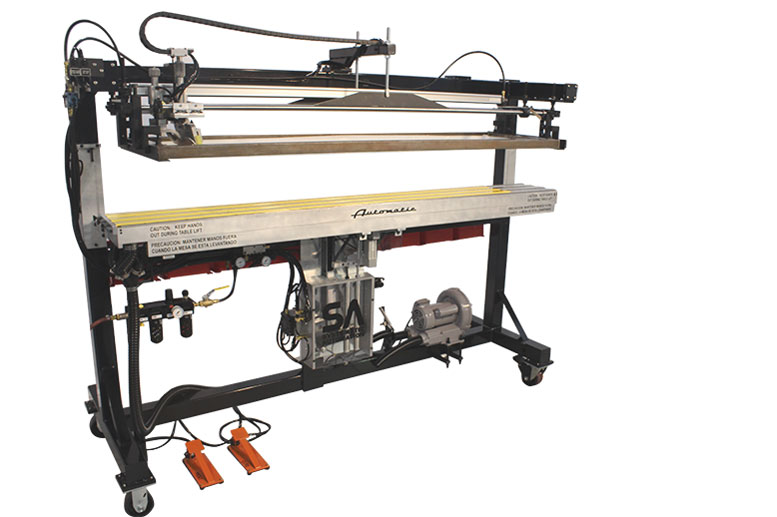

  • large format screen printing, ruler printer
    Automatic take-off into conveyor.


Features

Engineering Features

  • Machine tool quality and durability.
  • Capability to print flat & cylindrical products.
  • Stainless steel air cylinders.
  • Hardened, ground, and polished shafts with linear ball bearings rated at over 300 million cycles.
  • Screen stays stationary – substrate is lifted to screen.
  • Independent micro-adjustable squeegee and floodbar height.
  • Table features independently micro-adjustable X, Y and angular movements.
  • 100% pneumatic operation that cannot overload or burnout.
  • Aluminum tooling plate base ground flat within +/- .001” (.025 mm).
  • 100% made in USA.
  • Quick changeover from flat to cylindrical, tapered or ovals products.
  • Flood bar rises and falls alternately with squeegee.
  • Hinged rear screen frame holder to provide quick access to screen image area, squeegee and flood bar.
  • Smooth, quiet operation.

Standard Features

  • Pneumatic control panel.
  • Emergency stop.
  • Harmonic lifting table with 8′′ movement upward to screen.
  • X, Y, and angular micro adjust table.
  • Foot pedal cycle start.
  • Heavy-duty welded steel base with casters and tote bins.
  • Squeegee holder.
  • Flood bar.
  • Independent squeegee/flood bar height adjustment.

Options

  • Vacuum table. Anodized top surface available.
  • Quiet, regenerative continuous duty vacuum pump.
  • Dual print head for precise squeegee pressure for images 16” (406 mm) or wider.
  • Capability for printing cylindrical objects.
  • Cylindrical printing attachments including inflation device for soft walled plastic bottles.
  • Rack and gear drive for cylindrical printing.
  • Adjustable squeegee angle.
  • Adjustable squeegee pressure with gauge and regulator.
  • Wide range of standard tooling fixtures developed for plastic, ceramic and glass products.
  • Multicolor registration capabilities.
  • Clean room compatibility.
  • Stroke counter.
  • Three precision dial indicators mounted on X, Y, and angular micro adjustable table.
  • Off contact dial indicator.
  • Flood/print cycle replaces standard print/flood cycle. Flood hold switch is omitted.
  • Automatic ink dispenser.

Typical Applications

  • Rulers
  • Buckets
  • Oil filters
  • Kegs
  • Skis
  • Snowboards
  • Hockey Sticks
  • Skateboards
